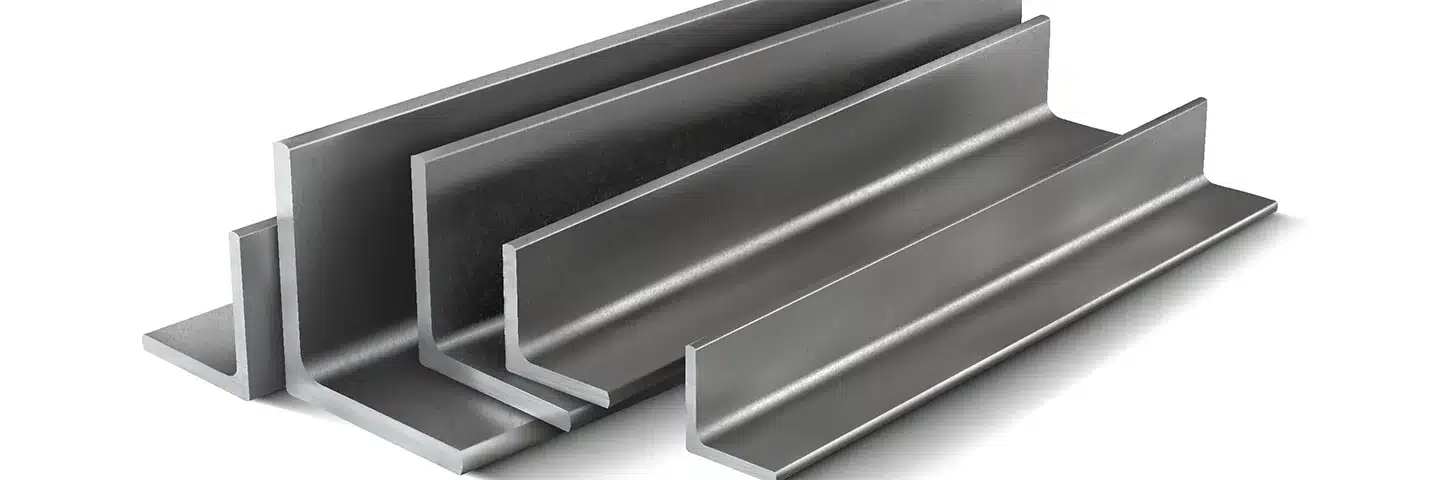

Daxun is a 316/316L stainless steel angle steel supplier in China

As a leading stainless steel angle steel supplier and exporter in China, Daxun supplies stainless steel angle steel to all over the world.
  • Grade: S31600(316)-S31603(316L)
  • Equal Angle Steel/Unequal Angle Steel
  • Process: hot rolling and laser welding
  • Easy to weld and process
  • Length can be cut to size
  • Daxun specializes in custom stainless steel angles with fast delivery and competitive prices. Contact Daxun today.

Global leader in stainless steel angle fabrication services

304/304L and 316/316L Stainless Steel Angles
As China’s premier supplier of specialty metals, you can trust Daxun for all of your stainless steel angle needs. Our stainless steel angle selection includes 304/304L and 316/316L stainless steel angles. Our extensive product line offers durability and versatility, making it the perfect solution for your structural and fabrication needs.

Our stainless steel angles are available in 304/304L and 316/316L, all from fully certified factories. Our comprehensive product line is both durable and adaptable, ideal for structural and fabrication applications. As a leading stainless steel angle manufacturer, we offer a wide range of specialty angles and L-shaped angles. Daxun offers stainless steel angles in any length, up to 6 meters. The following stainless steel grades are also available: 304/304L and 316/316L. Stainless steel angles are most commonly used for supports or frames, but are also used in food equipment, building supports, structural supports, and medical equipment.

Can be welded and processed using simple procedures, 304/304L stainless steel angles are suitable for many environments, such as general industrial projects, chemical projects. While 316/316L angles are marine grade and have strong corrosion resistance in more demanding conditions.

The surface treatment we use on our stainless steel angles is hot rolling, annealing, and pickling. This surface treatment maximizes corrosion resistance and gives the angles a unique “stainless” appearance.

The two manufacturing methods are laser melting and hot rolling. Hot rolling produces stainless steel angles at a lower price. They usually have rounded or tapered edges. On the other hand, laser melted stainless steel angles have consistent sharp and square corners. They also have a sandblasted, smoother surface. Laser melted stainless steel angles have a smoother surface quality than hot rolled stainless steel angles.

Daxun Alloy manufactures laser melted and hot rolled stainless steel angles in metric and imperial sizes. We can ship them all over the world.

Read More

Data

Standard ASTM、EN、DIN、JIS,ASME, BS, GBetc,
Dimensions ∠20*20*3mm-∠200*200*24mm
Alloy 201, 310, 304, 304L, 316, 316L
Type Equal, Unequal
Length 1.0-12.0m
Thickness 3mm-25mm
Custom Options Yes
Tolerances ± ¼”, ± 1/16”
Finish Mill, brush, mirror, polished
CHEMICAL COMPOSITION: ASTM A240, A666
Element Type 316 Type 316L
Carbon 0.08 max. 0.030 max.
Manganese 2.00 max. 2.00 max.
Sulfur 0.030 max. 0.030 max.
Phosphorus 0.045 max. 0.045 max.
Silicon 0.75 max. 0.75 max.
Chromium 16.0 – 18.0 16.0 – 18.0
Nickel 10.00 – 14.00 10.00 – 14.00
Molybdenum 2.00 – 3.00 2.00 – 3.00
Nitrogen 0.10 max. 0.10 max.
Type Yield Strength 0.2% offset (KSI) Tensile Strength (KSI) % Elongation (2″ Gauge length)
316 30 min. 75 min. 40 min.
316L 25 min. 70 min. 40 min.
Density (lb./ in^2) @ RT 0.29
Modulus of Elasticity in Tension (psi x 10^6) 28
Specific Heat (BTU/o F/lb.) 32 to 212 oF 0.12
Thermal Conductivity (BTU/hr/ft^2/ft) 212oF 9.4
932oF 12.4
Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F) 32 to 212oF 8.9
32 to 600oF 9
32 to 1,000oF 9.7
32 to 1,200oF 10.3
Electrical Resistivity (micro ohms – cm) at 70oF 29.4
Melting Point Range (oF) 2500 – 2550
Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316l S31603 316S11 1.4404 X2CrNiMo17-12-2 2348 SUS 316L

Choose Daxun and make your customers satisfied.

Contact Daxun now

Quick response

We provide timely and fast delivery of stainless steel products for customers with urgent needs. Behind the speed is the system support from information flow to logistics and capital flow. For example, in terms of information flow, Daxun’s order data is pushed to the logistics system in real time, and the data is seamlessly connected; in terms of logistics, the processing center is close to highways and rivers and seas, with reasonable scheduling, rapid response, storage and transportation linkage, and efficient loading, ensuring that the task is completed on schedule.Daxun’s stainless steel materials are of reliable quality, and their varieties, specifications and delivery weights strictly comply with the standards.

Contact Daxun now

Daxun Advantages

Quality is belief, and integrity is a business card. Daxun pioneered the concept of “performance excellence management” and implemented the “PDCA+Lean” management model. The company’s business card says “Daxun = assured quality”. Daxun Stainless Steel uses the ERP system to achieve full traceability of each angle steel, including variety, specification, and origin, and advocates and encourages industry anti-counterfeiting. Daxun Stainless Steel relies on technology for processing and customization, and high precision and high quality are the industry benchmarks; in terms of service, it promotes product life cycle management, provides professional material selection and processing solutions before sales, strictly monitors during sales, and provides worry-free service guarantees after sales.

Contact Daxun now

Packaging

Daxun Alloy ensures the best quality of packaging as it plays an important role in international freight where goods go through various channels to reach the final destination, so we pay special attention to packaging. We pack our goods in many ways depending on the product. We pack our products in many ways such as:
• Boxes and crates
• Shrink wrap
• Wooden pallets
• Wooden boxes

Contact Daxun now

Quality, delivery, inspection

  • Daxun also conducts several quality assurance tests. These tests include flattening test, pitting and resistance test, mechanical test, hardness test, material positive identification, expansion test, etc. All these tests ensure that the material is suitable for the required application.
  • During the production process, we measure the diameter, thickness, and surface of the product. Our standard delivery time is 7-15 days, except for some special size products, our delivery time will increase to 20 days.
    Our delivery time is strictly in accordance with the contract.
  • Support customer third-party agencies to go to the factory for inspection
  • Support free samples to customers for testing
  • Support on-site or video factory inspection
Contact Daxun now

Ordering Information

Purchase orders should include quantity, grade, type or category, API5L reference, thickness, width, length, and any applicable attachments or additional requirements related to chemical composition, mechanical properties, heat treatment, additional testing, manufacturing process, surface coating or end finish. Contact Daxun now, we will reply to your email as soon as possible.

Contact Daxun now

Technical Support

If you need any additional technical assistance, our resident metallurgist and knowledgeable staff will be pleased to help. Additionally, Daxun boasts a certified testing laboratory—a first in the multi-metal and plastic inventory industry. This, in our opinion, demonstrates our unwavering dedication to quality and our philosophy as a full-service supplier.

SS 316-316L Stainless Steel angle Features

High strength
Corrosion resistance
Heat resistance
Low temperature resistance
Environmental protection
Welding performance

Daxun Alloy Let your brand improve rapidly

Angle – Steel Data
    EQUAL AND UNEQUAL ANGLE
    Angle is available in other sizes on request
    Description Width (W)
(mm)
Depth (D)
(mm)
Thickness
(T) (mm)
Standard
Length
Weight per
Metre
(kg/m)
Surface
Area per
Metre
(m²/m)
    ANGLE 20 X 20 X 3.0mm 20 20 3.0 6.0 metres 0.98 0.0897
    ANGLE 25 X 25 X 3.0mm 25 25 3.0 7.5 metres 1.12 0.0953
    ANGLE 25 X 25 X 5.0mm 25 25 5.0 7.5 metres 1.65 0.0953
    ANGLE 25 X 25 X 6.0mm 25 25 6.0 7.5 metres 2.08 0.0953
    ANGLE 30 X 30 X 2.5mm 30 30 2.5 6.0 metres 1.06 0.117
    ANGLE 30 X 30 X 3.0mm 30 30 3.0 7.5 metres 1.35 0.115
    ANGLE 30 X 30 X 5.0mm 30 30 5.0 7.5 metres 2.01 0.115
    ANGLE 30 X 30 X 6.0mm 30 30 6.0 7.5 metres 2.56 0.115
    ANGLE 40 X 40 X 2.5mm 40 40 2.5 6.0 metres 1.43 0.157
    ANGLE 40 X 40 X 3.0mm 40 40 3.0 7.5 metres 1.83 0.155
    ANGLE 40 X 40 X 4.0mm 40 40 4.0 6.0 metres 2.2 0.155
    ANGLE 40 X 40 X 5.0mm 40 40 5.0 9.0 metres 2.73 0.155
    ANGLE 40 X 40 X 6.0mm 40 40 6.0 9.0 metres 3.5 0.155
    ANGLE 45 X 45 X 3.0mm 45 45 3.0 9.0 metres 2.06 0.175
    ANGLE 45 X 45 X 5.0mm 45 45 5.0 9.0 metres 3.1 0.175
    ANGLE 45 X 45 X 6.0mm 45 45 6.0 9.0 metres 3.97 0.175
    ANGLE 50 X 50 X 2.5mm 50 50 2.5 9.0 metres 1.81 0.197
    ANGLE 50 X 50 X 3.0mm 50 50 3.0 7.5 metres 2.31 0.195
    ANGLE 50 X 50 X 4.0mm 50 50 4.0 9.0 metres 2.79 0.195
    ANGLE 50 X 50 X 5.0mm 50 50 5.0 9.0 metres 3.48 0.195
    ANGLE 50 X 50 X 6.0mm 50 50 6.0 9.0 metres 4.46 0.195
    ANGLE 50 X 50 X 8.0mm 50 50 8.0 9.0 metres 5.68 0.195
    ANGLE 55 X 55 X 5.0mm 55 55 5.0 9.0 metres 3.84 0.215
    ANGLE 55 X 55 X 6.0mm 55 55 6.0 9.0 metres 4.93 0.215
    ANGLE 65 X 50 X 5.0mm 65 50 5.0 9.0 metres 4.02 0.225
    ANGLE 65 X 50 X 6.0mm 65 50 6.0 9.0 metres 5.16 0.225
    ANGLE 65 X 50 X 8.0mm 65 65 8.0 9.0 metres 6.59 0.225
    ANGLE 65 X 65 X 4.0mm 65 65 4.0 9.0 metres 3.69 0.255
    ANGLE 65 x 65 x 5.0mm 65 65 5.0 9.0 metres 4.56 0.255
    ANGLE 65 X 65 X 6.0mm 65 65 6.0 9.0 metres 5.87 0.255
    ANGLE 65 X 65 X 8.0mm 65 65 8.0 9.0 metres 7.51 0.255
    ANGLE 65 X 65 X 10.0mm 65 65 10.0 9.0 metres 9.02 0.255
    ANGLE 75 X 50 X 5.0mm 75 50 5.0 9.0 metres 4.4 0.244
    ANGLE 75 X 50 X 6.0mm 75 50 6.0 9.0 metres 5.66 0.244
    ANGLE 75 X 50 X 8.0mm 75 50 8.0 9.0 metres 7.23 0.244
    ANGLE 75 X 75 X 4.0mm 75 75 4.0 9.0 metres 4.29 0.295
    ANGLE 75 X 75 X 5.0mm 75 75 5.0 9.0 metres 5.27 0.292
    ANGLE 75 X 75 X 6.0mm 75 75 6.0 9.0 metres 6.81 0.292
    ANGLE 75 X 75 X 8.0mm 75 75 8.0 9.0 metres 8.73 0.292
    ANGLE 75 X 75 X 10.0mm 75 75 10.0 9.0 metres 10.5 0.292
ANGLE 90 X 90 X 6.0mm 90 90   6.0 9.0 metres    8.22 0.352
ANGLE 90 X 90 X 8.0mm 90 90   8.0 9.0 metres    10.6 0.352
ANGLE 90 X 90 X 10.0mm 90 90   10.0 9.0 metres    12.7 0.352
ANGLE 100 X 75 X 6.0mm 100 75   6.0 9.0 metres    7.98 0.342
ANGLE 100 X 75 X 8.0mm 100 75   8.0 9.0 metres    10.3 0.342
ANGLE 100 X 75 X 10.0mm 100 75   10.0 9.0 metres    12.4 0.342
ANGLE 100 X 100 X 10.0mm 100 100   10.0 9.0 metres    14.2 0.392
ANGLE 100 X 100 X 12.0mm 100 100   12.0 9.0 metres    17.7 0.392
ANGLE 100 X 100 X 4.0mm 100 100   4.0 9.0 metres    5.78 0.395
ANGLE 100 X 100 X 6.0mm 100 100   6.0 9.0 metres    9.16 0.392
ANGLE 100 X 100 X 8.0mm 100 100   8.0 9.0 metres    11.8 0.392
ANGLE125 X 75 X 6.0mm 125 75   6.0 9.0 metres    9.16 0.392
ANGLE 125 X 75 X 8.0mm 125 75   8.0 9.0 metres    11.8 0.392
ANGLE 125 X 75 X 10.0mm 125 75   10.0 9.0 metres    14.2 0.392
ANGLE 125 X 75 X 12.0mm 125 75   12.0 9.0 metres    17.7 0.392
ANGLE 125 X 125 X 8.0mm 125 125   8.0 9.0 metres    14.9 0.491
ANGLE 125 X 125 X 10.0mm 125 125   10.0 9.0 metres    18 0.491
ANGLE 125 X 125 X 12.0mm 125 125   12.0 9.0 metres    22.5 0.491
ANGLE 125 X 125 X 16.0mm 125 125   16.0 9.0 metres    29.1 0.491
ANGLE 150 X 90 X 8.0mm 150 90   8.0 9.0 metres    14.3 0.471
 ANGLE 150 X 90 X 12.0mm 150 90   12.0 9.0 metres    21.6 0.471
ANGLE 150 X 90 X 16.0mm 150 90   16.0 9.0 metres    27.9 0.471
ANGLE 150 X 100 X 10.0mm 150 100   10.0 9.0 metres    18 0.491
ANGLE 150 X 100 X 12.0mm 150 100   12.0 9.0 metres    22.5 0.491
ANGLE 150 X 150 X 10.0mm 150 150   10.0 9.0 metres    21.9 0.59
ANGLE 150 X 150 X 12.0mm 150 150   12.0 9.0 metres    27.3 0.59
ANGLE 150 X 150 X 16.0mm 150 150   16.0 9.0 metres    35.4 0.59
ANGLE 150 X 150 X 19.0mm 150 150   19.0 9.0 metres    42.1 0.59
ANGLE 150 X 90 X 10.0mm 150 90   10.0 9.0 metres    17.3 0.471
ANGLE 200 x 200 x 13.0mm 200 200   13.0 9.0 metres    40 0.788
ANGLE 200 X 200 X 16.0mm 200 200   16.0 9.0 metres    48.7 0.788
ANGLE 200 X 200 X 20.0mm 200 200   20.0 9.0 metres    60.1 0.788
ANGLE 200 X 200 X 26.0mm 200 200   26.0 9.0 metres    76.8 0.788

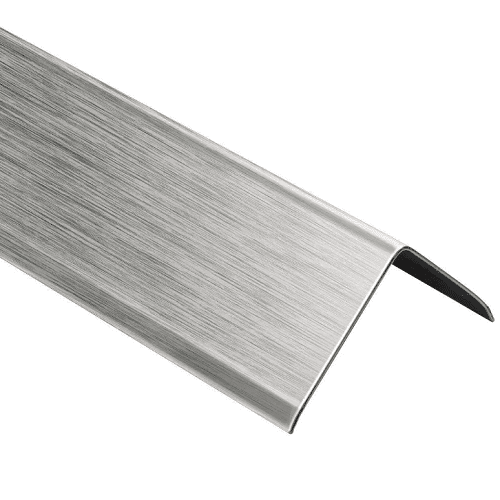

SS 316/316L Stainless Steel Angle Surface Type (3)

  • Applies to:curtain walls、entryways、canopies、handrails、window and door fittings、street furniture、cladding、masonry supports、fabrication projects,Can be used in a variety of applications, from decking, brackets, posts and frames to trim, tracks and siding

  • Applies to:curtain walls、entryways、canopies、handrails、window and door fittings、street furniture、cladding、masonry supports、fabrication projects,Can be used in a variety of applications, from decking, brackets, posts and frames to trim, tracks and siding

  • Applies to:curtain walls、entryways、canopies、handrails、window and door fittings、street furniture、cladding、masonry supports、fabrication projects,Can be used in a variety of applications, from decking, brackets, posts and frames to trim, tracks and siding

Information available for reference and download

Daxun is a trustworthy stainless steel Angle manufacturer

As a professional manufacturer, Daxun ensures that all the products we produce are of high quality. Therefore, we ensure that all stainless steels are certified by ISO9001, SGS, CE, OQC and more international quality standards. We also conduct strict quality control to ensure that the stainless steel angles have less defects. At Daxun, you can rest assured that all products are durable, high quality and excellent in performance.

Recent hot case projects and products

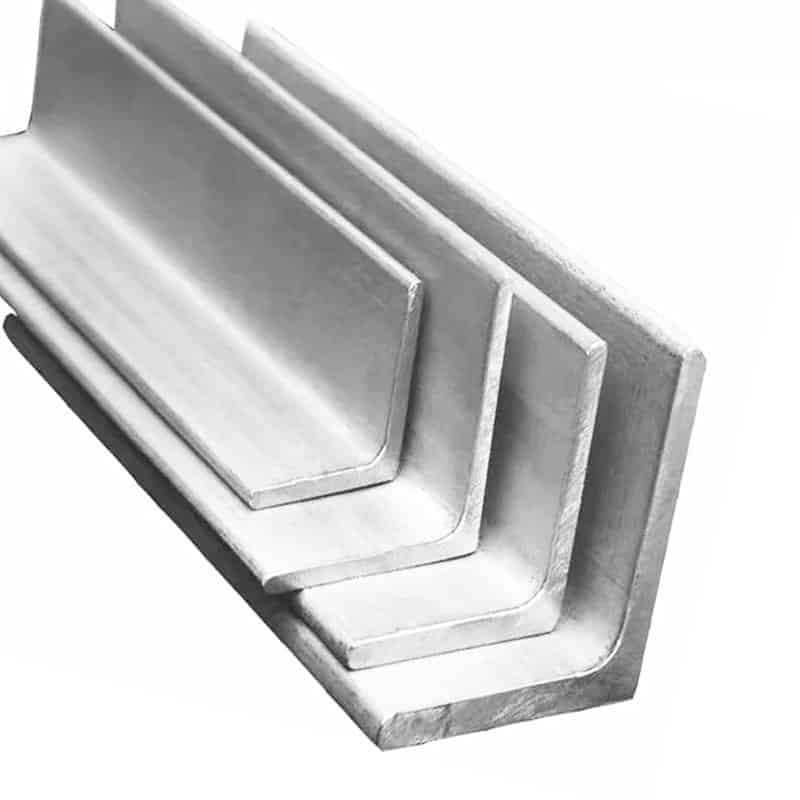

316L stainless steel Angle
stainless steel Angle
316L stainless steel Angle
stainless steel Angle
316L stainless steel Angle
stainless steel Angle
stainless steel Angle
316L stainless steel Angle
stainless steel Angle 316L
Detailed Introduction

Leading stainless steel angle Suppliers in China

Daxun has been engaged in international business for more than ten years. In 2023, the export volume exceeded 100 million US dollars, and the export volume ranked among the top Chinese stainless steel manufacturers. Daxun continuously improves its service skills. To serve the global market, it has established three export service facilities in China, cooperating with engineering companies, steel mills, and international trading companies. Daxun provides stainless steel chain services and has established long-term cooperative relations with dozens of well-known steel mills around the world. The inventory includes 50,000 tons of conventional stainless steel and 20,000 tons of duplex steel, nickel-based alloys, heat-resistant steel and other metals. Daxun’s stainless steel materials are of stable quality, and the varieties, specifications, and delivery weights strictly meet the standards.


316 Stainless Steel Angle

  • 316 Stainless Steel Angle is an austenitic chromium nickel angle shape containing molybdenum which provides superior corrosion resistance and increased strength at elevated temperatures when compared to 304 Stainless.
  • Because of the 4% molybdenum concentration, the 316 material is resistant to chloride ion stress corrosion. Stainless Steel 304 Unequal Angle Sizes vary depending on the application needs. Angles are used to hold components together using a grip. There are also angles with bolt holes for screws and bolts. The 316 Stainless Steel Unequal Angle is suitable for more corrosive applications than the 304 angles. The Stainless Steel Unequal Angle is just as frequent as the Equal Angle. They are utilized in a variety of applications, including brackets, trim, and reinforcements. Please contact us for more information about the angles and their costs.

Characteristics

  • Cold Working: Good
  • Corrosion Resistance: Excellent
  • Heat Resistance: Good
  • Heat Treatment: Poor
  • Hot Working: Fair
  • Machinability: Good
  • Weldability: Very Good



Why should you buy stainless steel angles from Daxun?

Daxun’s objective is to supply you with the highest quality and most durable stainless steel angles and steel. We provide hundreds of stainless steel angles in various leg lengths, thicknesses, and material grades. Our 316/316L and 304/304L stainless steel angles are made at our well-equipped production facility using high-quality raw materials and cutting-edge technology, overseen by qualified workers. Some other significant benefits of partnering with us include:

  • When you purchase any steel products from us, you get the products directly from the manufacturer.
  •  Our employees are dedicated to providing the lowest prices and fastest shipping times so that you can start your project right away!
  •  We have a skilled, capable workforce for quality checks, packaging, and shipping.
  •  We follow multiple quality check levels, which helps ensure that the products are of the highest standards.
  •  We have a qualified and dedicated support team available 24×7 to help you out if any issues arise.

Suppliers from China Make Stainless Steel Angles to Size

  • Daxun is a leading supplier of stainless steel products in China. With high-quality products and customized services, we can meet all your stainless steel angle needs. Order online or by phone and get it delivered in as fast as 15 days.

304 and 316 Grade Stainless Steel Angles

  • This versatile right angle steel has a wide range of applications and is available in grades 304 /30L and 316 /316L. Grade 304 is the most versatile and commonly used grade of stainless steel angle steel and is suitable for most general applications. It is easy to weld and has good formability and corrosion resistance. Sometimes called 18/8 stainless steel because its composition includes 18% chromium and 8% nickel, grade 304 is well suited to most applications.
  • Grade 316 is more suitable for harsh environments, such as exposure to salt water and areas with high industrialization. Due to the higher nickel content and the addition of molybdenum to the metal, it has higher corrosion resistance than grade 304, especially to chlorides and chlorinated solutions. It also has good weldability, but is more difficult to process than grade 304.

There are two basic processes for manufacturing stainless steel angles:

  • laser melting and hot rolling. Hot rolled stainless steel angles are less expensive. They typically have rounded or tapered edges. On the other hand, laser melted stainless steel angles have consistent sharp and square corners. They also include sandblasting and a smoother finish. The surface of laser melted stainless steel angles is smoother than that of hot rolled stainless steel angles. ​​

Choose Your Size and Size

  • We offer a wide variety of stainless steel angles, so whatever your needs, we have you covered. Grade 304 stainless steel angles come in a variety of sizes with thicknesses from 3mm-16mm and lengths of 1m, 3m, or 6m.
  • Our grade 316 angles come in thicknesses from 3mm-16mm and lengths of 1m, 3m, or 6m. Angles are available in a variety of sizes.

Talk to Your Preferred Stainless Steel Angle Supplier

  • It couldn’t be easier to buy the stainless steel angles you need, as well as all of our other products, through our website. Alternatively, you can call our sales team in China at +8613382898899 to place your order and they will be happy to process your order. If you have any questions, you can even send an email to daxunalloy@gmail.com and our team will get back to you as soon as possible.
How to get a quote OR understand the market information ASAP?

Please fill in the form on the “Contact Us” page, or call our sales manager at “+86 13382898899”, we will contact you as soon as possible. Our WhatsApp is online, and email (Daxunalloy@gmail.com) will be checked within 6 hours. Every inquiry or message will be responded to promptly. In addition, we share market information with our customers every week

Can I get some samples?

Samples can be provided free of charge, but the freight is borne by the customer, and will be refunded after cooperation.

Which countries have you already exported?

We’ve exported to more than 42 countries, such as Canada, Chile, Kuwait, Germany, South Korea, Saudi Arabia, Singapore etc.

What is your MOQ?

Our MOQ is 1 ton for 316L Stainless Steel Angle.

How do you control the quality?

We have a complete organization from raw material purchasing to processing and shipment arranging. In the whole chain, the documentary people ad QC will look for and check it by precise requirements.The third party inspection is welcomed.

How long is your delivery time?

Trial orders can be delivered within a week. For regular orders, it takes two weeks roughly.
