GENERAL PROPERTIES

316/316L stainless steel tube is an austenitic stainless steel pipe containing molybdenum. The increased nickel and molybdenum content of this grade makes its overall corrosion resistance better than 304, especially with respect to pitting and crevice corrosion in chloride conditions. In addition, 316/316L seamless pipe has excellent high temperature tensile, creep, and stress rupture strength, as well as excellent formability and weldability. 316L is a low carbon form of 316 that resists sensitization; therefore, it is widely used for large size welded components.

Specifications: UNS S31600/S31603.

APPLICATIONS:

 These numerous advantages and benefits mean that 316 Stainless Steel tube is used in many different applications and environments which include the following examples:

•  – Food preparation surfaces, equipment, and appliances, particularly in chloride environments
•  – Laboratory benches & equipment

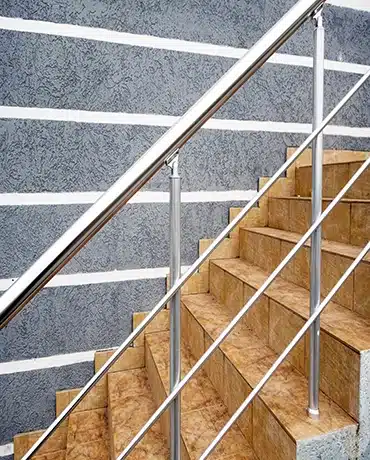

•  – Coastal architectural panelling, railings & trim
•  – Boat fittings
•  – Chemical containers, including for transport
•  – Heat Exchangers
•  – Woven or welded screens for mining, quarrying & water filtration
•  – Threaded fasteners
•  – Springs
•  – The storing and handling of acetic acid
•  – It’s used in the pulp and paper industry to avoid iron contamination of the product, specifically Type 316 is used extensively in the paper machine.
•  – Pressure vessels
•  – Furnace parts
•  – Valves & pumps
•  – Pharmaceutical equipment
•  – General chemical equipment
•  – Stainless steel floats
•  – Structural steel and components in marine environments
•  – Medical equipment
•  – Coastal environments
•  – Areas with high salt levels (such as roadways)
•  – Brewing facilities
•  – Environments with increased exposure to alkalis and acids
•  – Industrial equipment that handle corrosive process chemicals used to make such products as inks, textiles, bleaches, photographic chemicals, and rubber
•  – Food preparation equipment particularly in chloride environments.
•  – Architectural applications
•  – Medical implants, including pins, screws and orthopaedic implants like total hip and knee replacements

• Food preparation equipment, especially in chloride environments
• Chemical processing, equipment
• Laboratory benches and equipment
• Rubber, plastics, pulp & paper machinery
• Pollution control equipment
• Boat fittings, value and pump trim
• Heat exchangers
• Pharmaceutical and textile industries
• Condensers, evaporators and tanks

STANDARDS:

• ASTM/ASME: UNS S31600 / S31603
• EURONORM: X1 CrNiMo 17 12 2 / X3 CrNiMo 17 12 2
• AFNOR: Z 6 CND 17-11 / Z 2 CND 17-12
• DIN: 1.4401 / 1.4404

CORROSION RESISTANCE:

• Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium
  and molybdenum content.
• Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
• Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at
  140°F (60°C).
• Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.

HEAT RESISTANCE:

• Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C)
• Grade 316L is more resistant to carbide precipitation.

WELDING CHARACTERISTICS:

• Excellent weldability by all standard fusion methods, both with and without filler metals.
• Heavy welded sections in Grade 316 require post-weld annealing for maximum corrosion resistance, this is not required for grade 316L.

HEAT TREATMENT:

• Annealing temperature range is 1900 to 2100°F (1038 to 1149°C).
• Cannot be hardened by heat treatment.
• Special consideration is needed to compensate for a higher coefficient of thermal expansion to avoid warping and distortion.

PROCESSING – HOT FORMING:

• Most producers recommend a maximum forging temperature between 2100°F and 2300°F
• Do not forge below 1700°F (927°C) Best
• Corrosion resistance is obtained if the forgings are given a final anneal.

PROCESSING – COLD FORMING:

• 316/316L types being extremely tough and ductile, can be readily cold worked such as roll form, swaging, cold heading, deep drawing,
  bent, etc., without difficulty
• Severely cold formed parts should be annealed to remove stresses.

MACHINEABILITY:

• Type 316/316L is somewhat more difficult to machine than Type 304 because of its toughness.
• 316/316L machines with chip characteristics that are tough and strong.
• Chip breakers and curlers are advised.
• As large a tool as possible and great amounts of cutting fluid should be used.
• Heavy positive feeds at low speeds should be considered since 316/316L work hardens rapidly.

Find the stainless steel tube you need right here

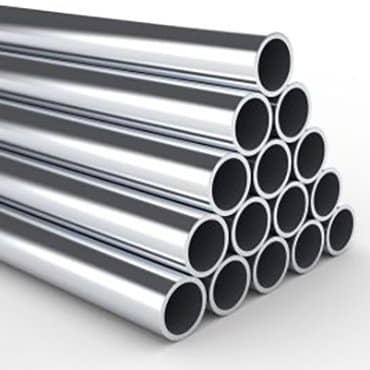

• We maintain a large inventory of high-quality standard and special grade seamless stainless steel tube and welded stainless steel tubing. Our 300 series stainless steel tube, which includes our 304 and 316 stainless steel tubes, offers greater strength and corrosion resistance for use in high-pressure and harsh conditions, making it suitable for your projects. ASTM standard requirements include A213 seamless stainless steel tube, A269 welded stainless steel tube, A511 seamless mechanical stainless steel tube, and A554 ornamental stainless tube, with manufacturing options of annealed, pickled, or bright annealed.
• Stainless steel tubes are offered in welded and seamless configurations, with annealed, pickled, and bright annealed manufacturing choices.
• We carry and specialise in small and large outer diameter stainless steel tubes of various thicknesses and grades, all of which are in stock and available to be custom cut, polished, and supplied to you promptly. Our services for cutting and polishing stainless steel tubes can be tailored to your individual needs.
• Daxun Alloys is the UK’s leading supplier of stainless steel tubes. Our high quality products, fast delivery and free unlimited cutting make us the preferred stainless steel tube supplier for many domestic and international customers. Order online or by phone and receive stainless steel tubes cut to your specifications within 5-7 days.

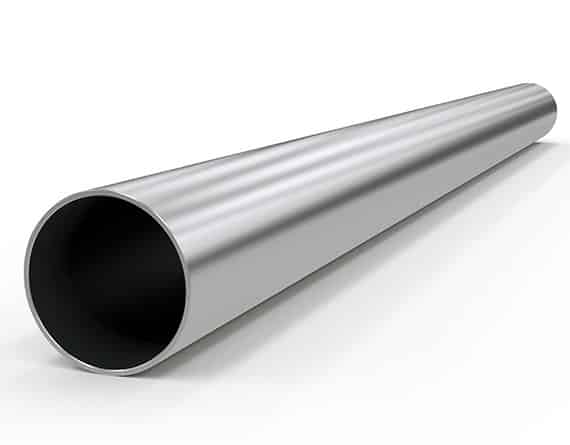

316/316L grade stainless steel pipe

Wide choice of dimensions and free cutting

• Whatever your needs, Daxun Alloys has the perfect stainless steel tube for you. We offer 3m and 6m lengths, with diameters from 3mm to 2000mm (Grade 316) and ¾” to 20″ (Grade 316L).
• If you require a specific length, we offer a free unlimited cutting service with every purchase. Using state-of-the-art bandsaws, our precision cutting service can cut the tube to the exact length you require. Just let us know when ordering. It’s another reason why we are a leading stainless steel tube supplier to our domestic and international customers.

Contact your stainless steel tube suppliers

• You can easily order stainless steel pipes online, in any size, in any quantity.
• Alternatively, our friendly sales team will be happy to take your order. Simply call +86 13382898899 or email Daxunhejin@gmail and we will get back to you as soon as possible.
